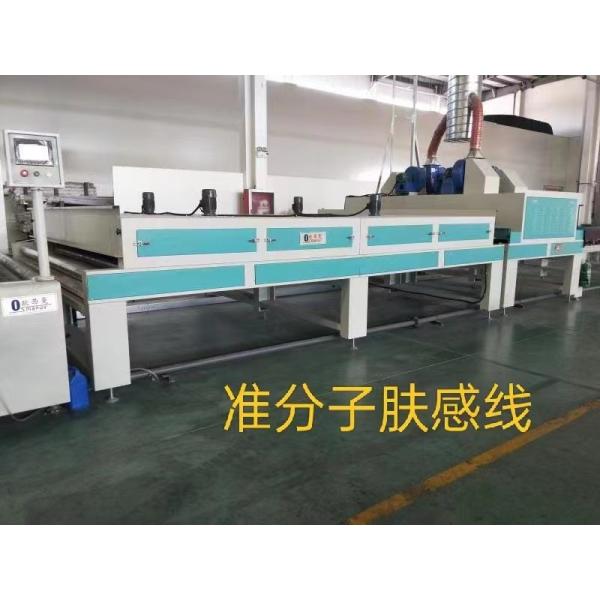

Microstructure Excimer Skin Sensing Equipment Optical Surface

Brand Name : Osmanuv

Model Number : OSM-ZFZ-1300FB

Certification : ISO9001 And CE

Place of Origin : CHINA

MOQ : 1 Set

Payment Terms : T/T,Western Union

Delivery Time : 35-45 Working days

Price : Negotiable

Packaging Details : Wooden Box

Supply Ability : According to customer's demand

Cutting thickness : Depends,0-20mm,1~25mm

Cnc or not : Yes

Cooling mode : Water Cooling

Warranty : 1 Year

Cutting area : 6000mm-8000mm×1650mm×1680mm

Power supply : 220V/50HZ

Contact Now

Microstructure Excimer Skin Sensing Equipment Optical Surface
Excimer Skin Sensing Equipment, Treatment Of Excimer UV Optical Surface Microstructure - Introduction
序号 Number 名称 Name 参数 Parameter
1 UV-LED 5kw(395nm)✖1支
2 准分子灯 Comolecular lamp 320w 48支,有效发光:1300mm
3 机器尺寸 Machine size 6000mm-8000mm长×1650mm宽×1680mm高 (依实际尺寸为准)
6000mm-8000mm length 1650mm wide 1680mm height (subject to actual size)
4 有效宽 Effective width 有效宽:1300mm
Valid width: 1,300 mm
5 材质 Material quality 发热区外壳采用A3板制作而成,中间加保温棉保温
The heating area shell is made of A3 board, and the insulation cotton is added in the middle
6 输送带 Conveyor 采用不锈钢输送带传送
Transfer with a stainless steel conveyor belt
7 传动系统 Drive system 传动马达采用台湾齿轮减速机
The transmission motor adopts the Taiwan gear gear reducer
8 控制系统 Navar 采用台湾台达变频器,速度可调1-10米分钟,并有速度数字显示器.采用BKC温控器控制工作所需温度,温度:常温-80℃可调
Using Taiwan Delta frequency converter, the speed can be adjusted for 1-10 meters minutes, and the speed digital display. Use the BKC thermostat to control the required working temperature, temperature: room temperature-80℃ adjustable
9 电器部分 Electrical parts BKC温控器,CHNT接触器,台湾台达变频器,开关采用日本和泉开关等均符合国际标准之进口电器
BKC thermostat, CHNT contactor, Taiwan Delta frequency converter, switch using Japan and spring switch and other imported electrical appliances in line with international standards
10 安全系统 Security system 超温防止器,马达过载保护,控制线路保险,紧急停止开关等……所有电器符合国际标准之一级产品
Ultra-temperature protector, motor overload protection, control line insurance, emergency stop switch, etc. All electrical appliances meet the international standard of class I products
准分子UV光表面微结构处理--超哑设备介绍
Treatment of excimer UV optical surface microstructure - Introduction
Microstructure Excimer Skin Sensing Equipment Optical Surface Microstructure Excimer Skin Sensing Equipment Optical Surface
准分子设备
Quasi-molecular equipment
Microstructure Excimer Skin Sensing Equipment Optical Surface Microstructure Excimer Skin Sensing Equipment Optical Surface
准分子UV光 超哑技术的优势
Advantages of the excimer UV optical super-matte technology
Microstructure Excimer Skin Sensing Equipment Optical Surface
准分子UV光超哑技术与其他技术对比
Excimer UV light compared with other techniques
Microstructure Excimer Skin Sensing Equipment Optical Surface
图片仅供参考
Pictures for reference only
